BLT-8 Dovetail Flex-O-Lok® Anchor

Dovetail Anchor for Masonry to Concrete

Additional information

AVAILABLE FINISHES

Hot Dip Galvanized, Type 304 Stainless Steel, Type 316 Stainless Steel

DIMENSIONS

12 ga. thick anchor clip with 3/16" (4.76 mm) dia. wire tie, WIRE TIE LENGTHS: 3-1/2” (88.9 mm), 4-1/2” (114.3 mm), 5-1/2” (139.7 mm), 7-1/2” (190.5 mm) or 9-1/2” (241.3 mm)

PACKAGING

100 pieces per box

Description

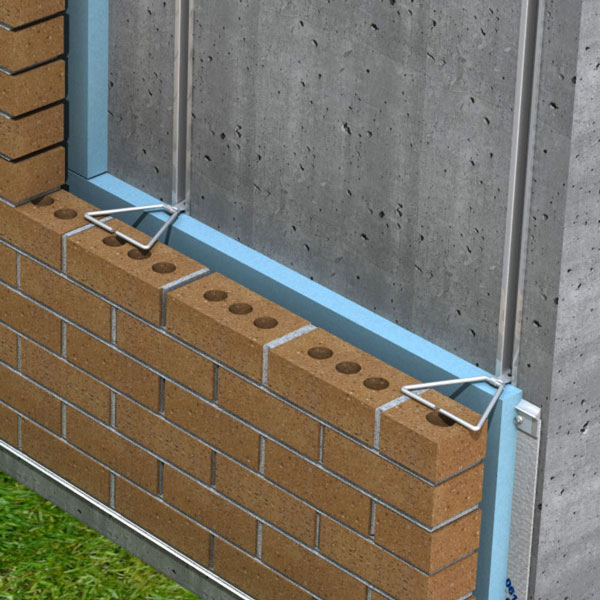

For anchoring masonry to concrete with a dovetail slot, the Flex-O-Lok® Ties provide lateral restraint while permitting horizontal and vertical movement (a seismic version is also available – see notes below).

NOTE:
  • Blok-Lok is not responsible for incompatibility if ties or slots are interchanged with those of other manufacturers
  • In Canada, per CSA A370, use of standard dovetail anchor in cavity walls wider than 40mm is prohibited.
  • Flex-O-Lok® Ties are available as BLT-9 or BLT-9 SEISMIC
