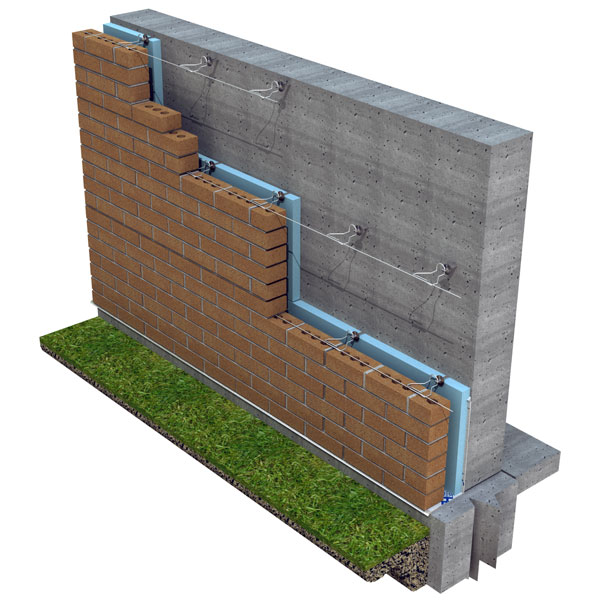

2-SEAL CONCRETE SEAL TIE INSTALLATION Continuous Wire
2-SEAL CONCRETE SEAL TIE INSTALLATION zooom
2-SEAL CONCRETE SEAL TIE INSTALLATION

2-Seal™ - Concrete Seal Tie

Innovative single screw veneer tie for concrete, CMU, wood stud or brick backup

Product Documents

Submittal Sheets

Safety Data Sheets Sheets

Additional information

AVAILABLE FINISHES

Polymer Coated
DIMENSIONS

2-Seal Byna-Lok Wire Tie : 3/16" DIA. x 3", 4" or 5" LONG, Barrel LENGTH (thickness of insulation): 5/8", 1", 1-1/2", 2", 2-1/2", 3", 3-1/2", 4", 4-1/2", and 5"

Description

2-SEAL-BYNA-TIE
2-Seal™ Byna-Lok Wire Tie

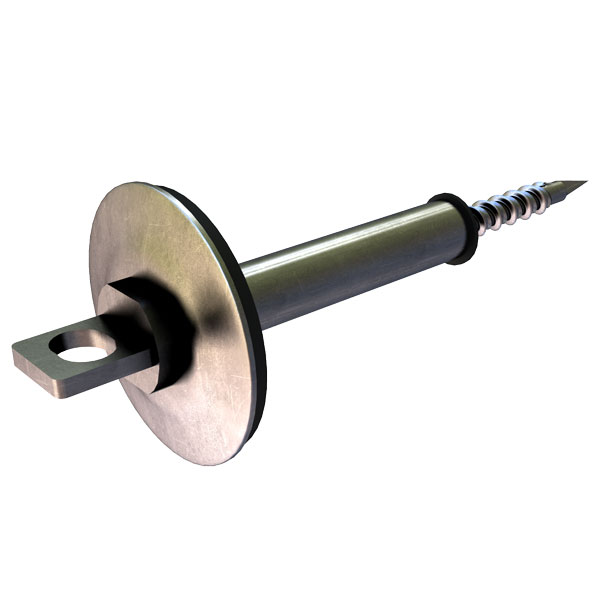

Ties the masonry veneer to the substrate. The Concrete Seal Tie’s screw portion has special alternating threads making it suitable for use with concrete, CMU, wood stud or brick backup, and is provided with EPDM sealing washers.

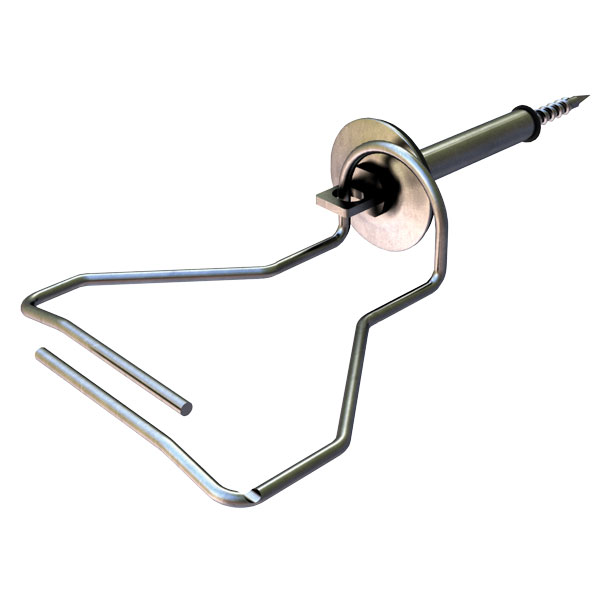

  • Consists of a Concrete Seal Tie combined with the 2-Seal™ Byna-Lok Wire Tie
  • The special point affords easy installation into a predrilled hole.
  • *For Stainless Steel, refer to Thermal Concrete 2-Seal™ Wing Nut Anchor.

NOTES:

  • 2-Seal™ Chuck Adapter required for installation.
  • The projecting eyelet accepts a 3/16″ x 3″, 4″ or 5″ 2-Seal Byna-Lok Wire Tie for the masonry veneer wall mortar joint.

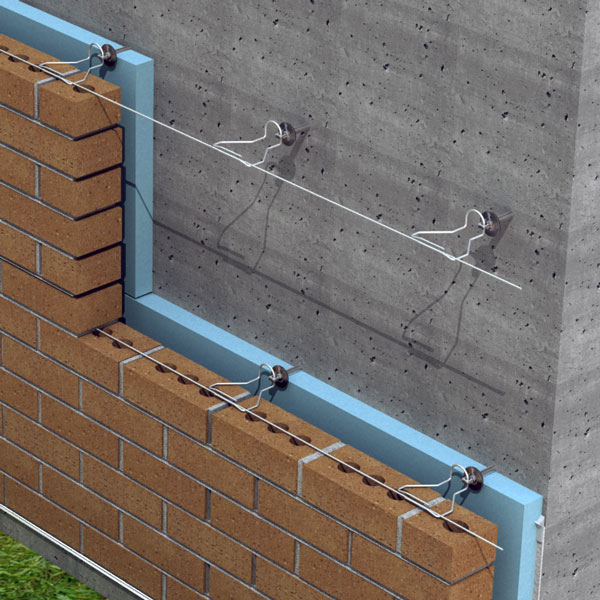

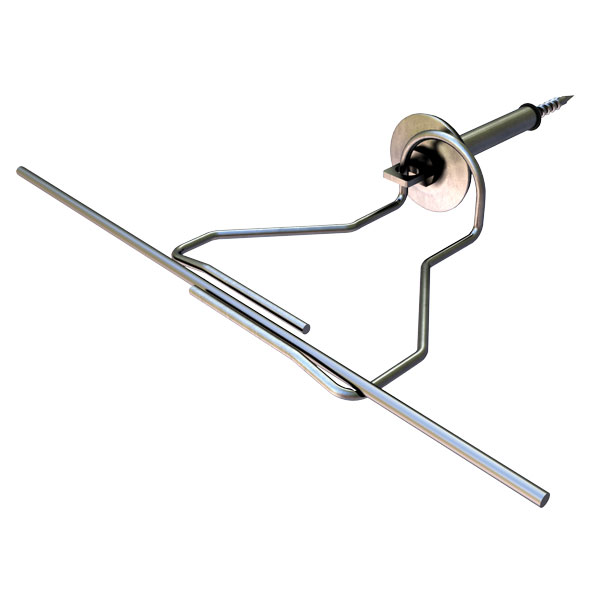

  • Adaptable for seismic zones with the simple addition of 9 gauge or 3/16″ continuous wire (just drop into the integral track formed by the swaged, overlapping legs of the wire tie.)
  • Patents Pending

Additional information

AVAILABLE FINISHES

Polymer Coated
DIMENSIONS

2-Seal Byna-Lok Wire Tie : 3/16" DIA. x 3", 4" or 5" LONG, Barrel LENGTH (thickness of insulation): 5/8", 1", 1-1/2", 2", 2-1/2", 3", 3-1/2", 4", 4-1/2", and 5"
