BL-LSA2
BL-LSA2 concrete assembly
BL-LSA2 steel beam assembly

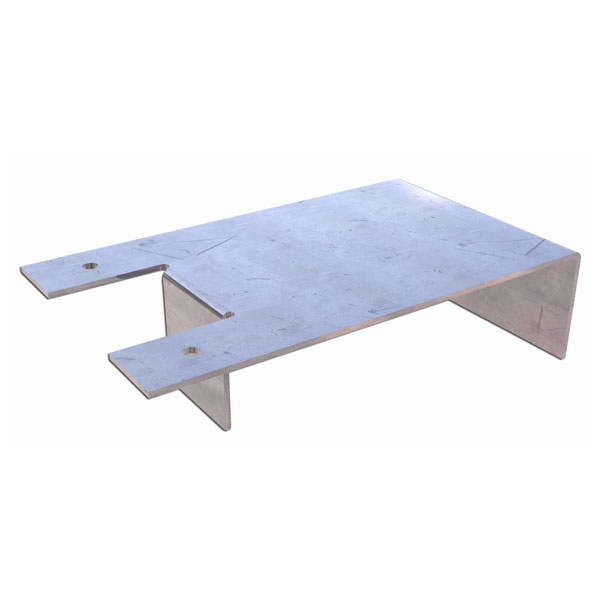

BL-LSA2 Lateral Support Anchor

For bolted or welded connection – lateral support anchor provides lateral shear resistance

Product Documents

Submittal Sheets

SDS Sheets

Additional information

AVAILABLE FINISHES

Hot Dip Galvanized, Mill Galvanized, Type 304 Stainless Steel
DIMENSIONS

Available for 4”-12” block, Other sizes available for heavy-duty applications, STANDARD BENDS: 2-1/2“ (64 mm), THICKNESS: 12 gauge

Description

BL-LSA2 lateral support anchors provide lateral shear resistance at the upper limit of masonry walls, they permit vertical deflection of the slab above, without transferring compressive loads to the masonry wall below.

  • BL-LSA2 anchors are suitable for construction using steel or concrete
  • BL-LSA2 lateral support anchors are for bolted or welded connections
NOTE:

Additional information

AVAILABLE FINISHES

Hot Dip Galvanized, Mill Galvanized, Type 304 Stainless Steel
DIMENSIONS

Available for 4”-12” block, Other sizes available for heavy-duty applications, STANDARD BENDS: 2-1/2“ (64 mm), THICKNESS: 12 gauge
