Spira-Lok® Helical Wall Tie System

The Original Helical Wall Tie System

Product Documents

Submittal Sheets

Additional information

AVAILABLE FINISHES

Type 304 Stainless Steel, Type 316 Stainless Steel

Description

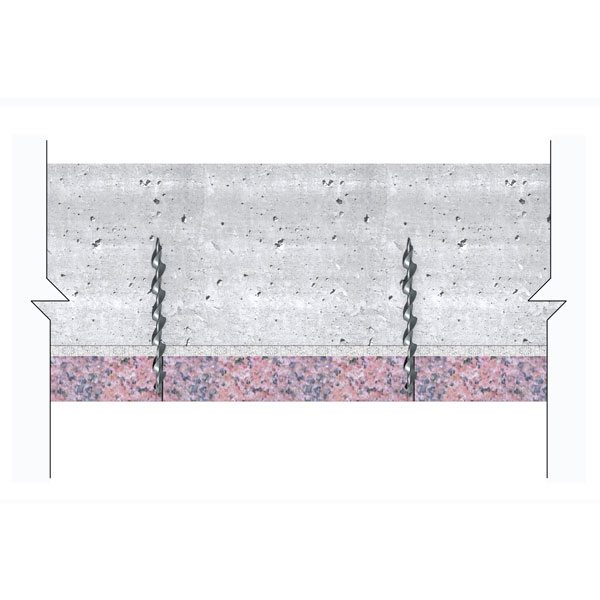

Spira-Lok® is a one-piece, flexible stainless steel wall tie for pinning masonry to new or existing walls. Also suitable for temporary support for lintel and shelf angle replacement. The dry-set technique may involve various tie diameters, drill bits and installation tools.

FEATURES

  • Only a small diameter pilot hole required.
  • No toxic adhesives or expansion devices.
  • Site-tested immediately after installation.
  • Functional in a wide variety of building materials.
  • Able to withstand cyclic loading.
  • Accommodates differential movements between materials.
  • Does not stress or fracture fragile substrates.


NOTE:

  • An on-site survey should be carried out prior to project tendering to determine material strength, tie diameter & length, pilot hole size and appropriate drilling technique.

SPIRA-LOK® Installation Video

SPIRA-LOK® Testing Video
